80mmX80mmX15mm air cooler axial fan 5V/12V/24V for computer CPU
Brushless axial dc fan 80mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Description:
> Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
> Various Size
> High speed , Middle speed, Low speed
> Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
> 5 blades 7 blades or 9 blades
> 5V DC 12V DC 24V DC
> Ball bearing or Sleeve bearing
> Terminal or Lead wire
> Waterproof explosion proof or high proof are can be satisfied.
Important Note:
Rated Current: Rated Current shall be measured after 3 minutes of continuos rotation at rated voltage.
Rated Speed: Rated Speed shall be measured after 3 minutes of continuos rotation at rated voltage
Start Voltage: The voltage which is able to start the fan to operate by suddenly switching “ON”
Dropping test standard: Drop a minimum packing box in a height of 30 cm for perpendicular free falling motion to the surface of wooden plate of 10 cm. After test, connect the fan to the power, the fan still in normal operation.
General specification
> Frame and Impeller: Plastic (94V-0),PBT
> Bearing Type: Sleeve bearing&Ball bearing
> Function Range: FG RD PWM IP58 IP68
> Leadwire: Red Wire Positive(+),Black Wire Negative(-)
> Operating Voltage: 5V 12V 24V
> Tempetature Range: –20℃ to +70℃
> Motor: Impedance Protected and Reverse Polarity Protected

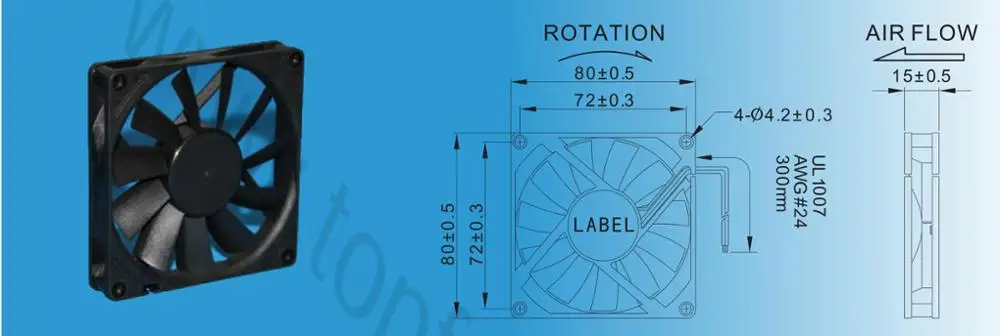

Dimensions
Specifications

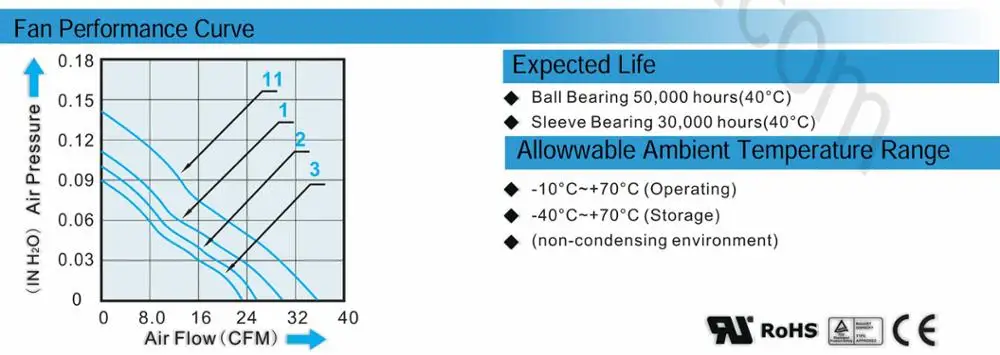

Fan performance curve

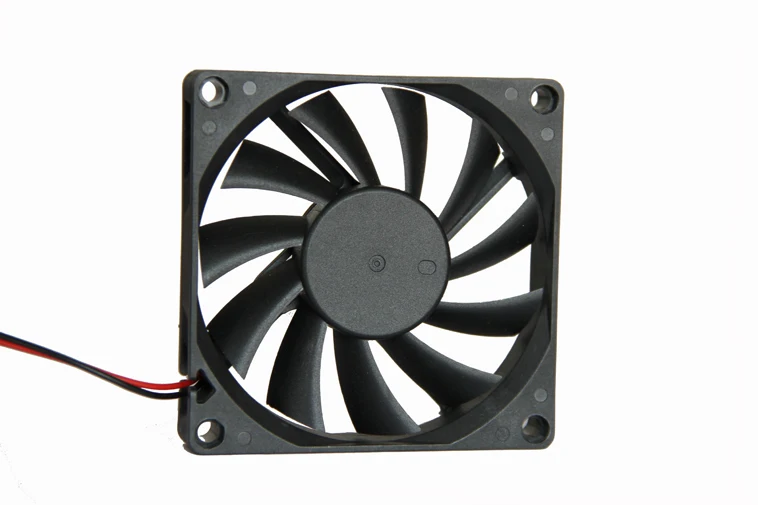

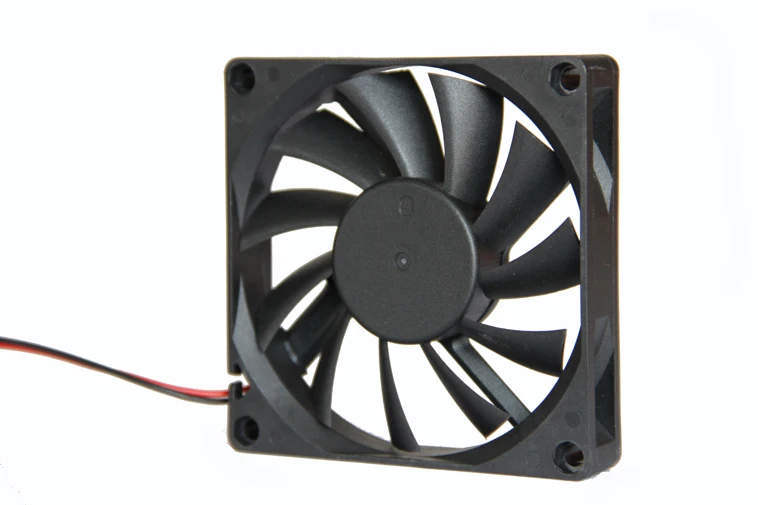

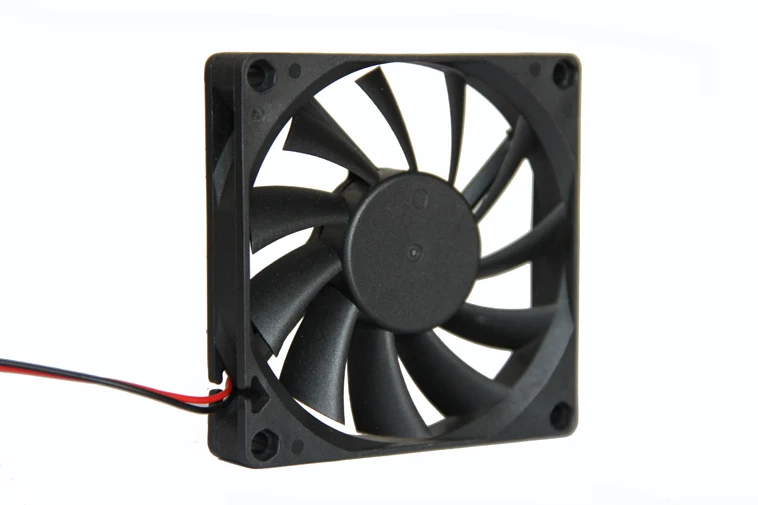

More photos
Application
Topfan’s fan products are utilized by all type of machines which required heat reduction systems ,
such as UPS systems ; Telecommunication equipments ; Ventilating systems ; LED Digital signage ; Disports / exercise equipments ; Medical instruments.
The products . including brushless fans . cross flow fans . blower fans . centrifugal fans . dc brushless motor . shades pole and RC ac fans etc. are being widely used in the information technology . network communications as well as industrial production equipment . medical equipment . and others .
Shenzhen Topfan - China Development Technology Co . , Ltd , founded in 1996 in Shenzhen China , is a professional manufacturer on dc brushless fans and ac fans . Products are CE , RoHS certificated and good sellers both at home and abroad , including Europe , North America , Asia ( Korea and India ) etc . Our quality and technical performance indexes hace reached the adcance world level , and our fans have advantages such as beautiful shape,compact structure,fine processing,high air pressrue,big air volume,light weight and thin in depth,low noise,long life,environmental adaptability,low price and trustworthy .
Package
Our Advantage
If you want another rpm or voltage or special functionm Please contact with us directly
The size , voltage, power & speed can be made according to your requirements
Could be made with waterproof dustproof function
Could be made with control speed ( PWM ) read speed ( FG ) and alarm ( RD ) function
We're professional manufacturer of cooling fans for 11 years' experience
We offer 30000 hours warranty for sleeve bearing fans , 50000 hours warranty for ball bearing fans
We can also provide fans with longer use time
On time delivery
If there are anything I can help you,pls feel free to contact Mona
Thanks very much :)
