Brand Name : MX/OEM/ODM
Model Number : MX10025GBH1
Certification : CE/ROHS
Place of Origin : CHINA
MOQ : 500pcs
Price : usd3.9-7.9
Payment Terms : T/T, Western Union
Supply Ability : 800000pcs/month
Delivery Time : 7-14 working days
Packaging Details : CARTON
Color : black
Air Flow : 70.52CFM
Voltage : 12v/24v/48v
Size : 100mmx25mm
Speed : 3000RPM
Application : Home Appliance
DC centrifugal fan Air purifier centrifugal fan 100mmx25mm, 4 inch car air conditioning fan
Description:
Various Size
High speed , Middle speed, Low speed
Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
5 blades 7 blades or 9 blades
12V DC 24V DC or 48V DC
Ball bearing or Sleeve bearing or Hydraulic bearing
Terminal or Lead wire
Waterproof explosion proof or high proof are can be satisfied.

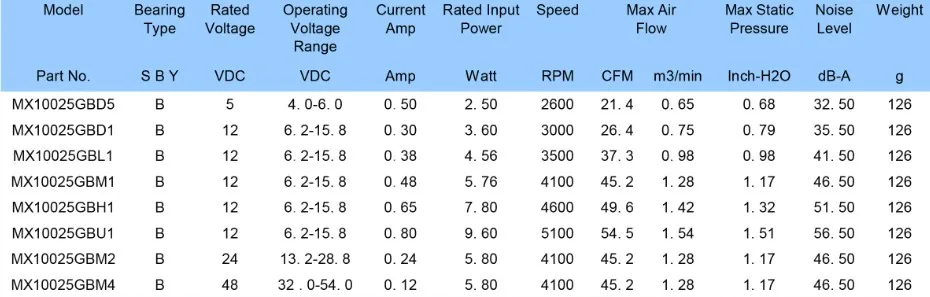

A: ELECTRICAL
B: (Main Materials, Parts Specification):
Bearing | √ (Dual Ball Bearing) | ◊ | (Sleeve Bearing) | |||||||
Frame | √ | PBT of 94V-0. | ◊ | Die-cast Aluminum Alloy | ||||||
Impeller | √ | PBT of 94V-0. | ◊ | Steel | ||||||
Bobbin | PBT of 94V-0. | |||||||||
Lead Wire | √ | Red(+) | √ | Black(-) | ◊ | Blue(PWM) | 1571 28# | |||
√ | Yellow(FG) | ◊ | White(RD) | 2 wires 100±10mm | ||||||
Connector | No | |||||||||
Tube | No |
C: Electrical Specification:
ITEM | Specification. Condition | ||||
Locked Rotor Protection | ◊ | Safety Condition | |||
√ | Auto power off after locked at rated voltage for 1sec After auto power off ,circuit attempt restart in 2 to 6sec | ||||
Polarity Protection | √ | Open circuit when Vcc&GND are exchanged | |||
◊ | Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged | ||||
Insulation Resistance | 10MΩ Between unshielded wire and frame at 500VDC/min | ||||
Dielectric Strength | 5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min | ||||
Special Function | ◊ | Soft Start 5s (0 to Max speed) | ◊ | Current Limiter |

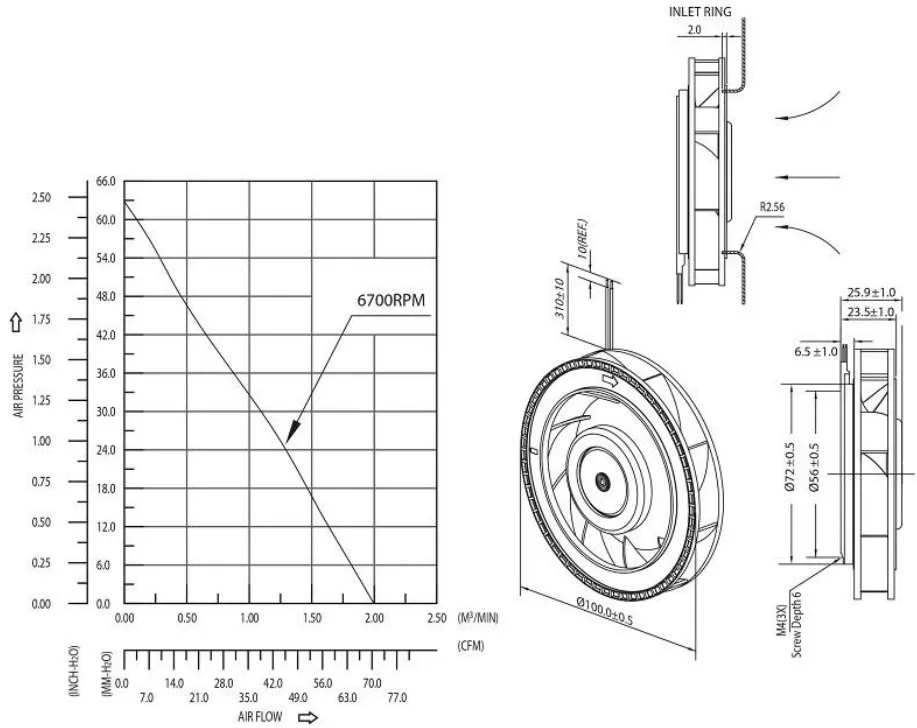

Dimensions(Unit:mm)
Shipment:
You could choose the shipping way by yourself .
You could choose the freight forward company by yourself .
We could arrang the shipment according to your require .
If you have any requirements you could contact me soon .
1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )
2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;
Fans quantity : over 5K , the delivery time is 15 - 20working days
3 . International express : UPS / DHL / FEDEX and so on .
1.We are professtional and experienced manufature of Axial Fan in China.
2.Customization, the size and functions of fan manufacture according to your demands.
3.We’ll reply you in 24 hours after you send inquiry to us.
4.We holding the principle of good faith to manage our company for 25 years.

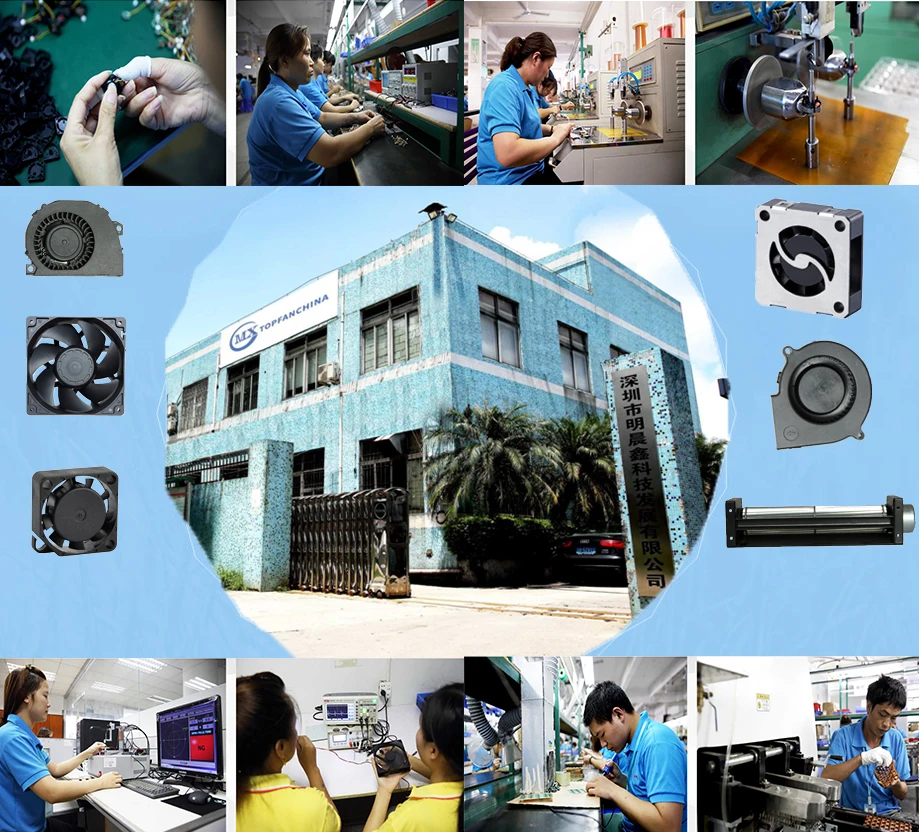

Shenzhen Topfan Technology Development Co., Ltd. is a professional fan design and processing enterprises. founded in 1996 in Shenzhen China, It's a manufacturer on AC fan and DC brushless fans. Products support OEM, ODM and passed CE RoHS UL EML EMS certificated and good sellers both at home and abroad, the products mainly includs axial fans, cross flow fans (tangential fan), blower fans (centrifugal), being widely used in the information technology, network communications as well as industrial equipment, medical equipment, home appliances and others.
Company:
- Fast lead time: sample in stock, just need 1-2days, for 1000pcs, just 2 weeks;
-OEM service based on MOQ1000pcs;
-Best price from factory;
-Best quality cooling fans, all fans will be done 100% testing before the fans sent out;
like the below
1. High temperature Preservation test
2. Low temperature Preservation test
3. Humidity preservation test
4. Temperature cycle test
5. Noise test
-Best service by our sales and engineers, we will reply you within 12 hours, provide one year warranty;
![]() |
